PAL70 Pallet coilnailer
- Article number
- PAL70
- Smooth shank nail length
- 45 - 70 mm
- Smooth shank nail diameter
- 2,3 - 2,87 mm
- Collation angle
- 16 °
- Collation type
- Wire collated
- Serie
- PalletPro

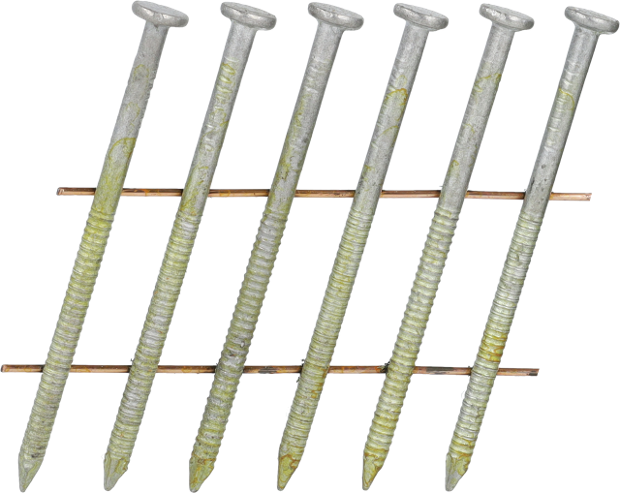

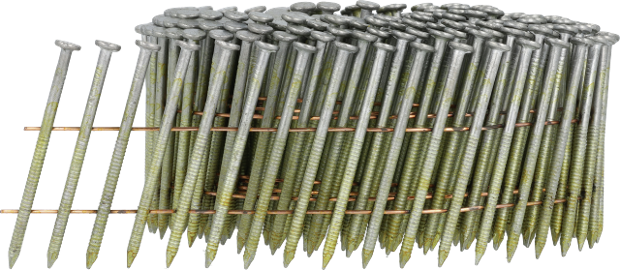

2,3mm flat ring coilnail, HDG, Sencoted, Retail
tap image to zoom
Description
2,3mm flat ring coilnail, HDG, Sencoted, Retail
Norm
- Harmonized standard EN 14592:2008+A1:2012
Specifications
Identificaton
- Article number
- EL24ASBHR
- GTIN
- 8715274042145
Technical specifications
- Collation angle
- 16 °
- Wounding type
- Flat
- Collation type
- Wire collated
- Wire material
- Carbon steel standard tensile
Fastener specifications
- Finish
- Hot-Dipped galvanised 3
- Coating
- Sencoted
- Application environment
- Outdoor
- Type of nail
- Coilnails
- Nail shank type
- Ring shank
- Point type
- Diamond
- Pointangle
- 36 °
- Pitch min
- 7.13 mm
- Pitch max
- 7.13 mm
- Max outerdiamer coil
- 108 mm
- Nail diameter
- 2.3 mm
- Amount fasteners on strip/coil
- 300 - 300
- Nail length
- 60.0 mm
CE Specifications
- Characteristic head pull through parameter
- 22.4 N/mm²
- CE fastener type
- Round cross-section ring shank nail
- DOP No
- EL24ASBHR
- Protection level in micron
- 55
- Service class
- 3
- Coating type
- Coating type 3
- Coating length
- 46.5 mm
- Head cross sectional area
- 23.0 mm
- Threaded/profiled length
- 41.0 mm
- Characteristic yield moment
- 1523.0 Nmm
- Characteristic tensile strength
- 620.0 N/mm²
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 8.9 N/mm²
Non-technical specifications
- Package quantity
- 2400
Logistical specifications
- Net weight
- 5.27 kg
