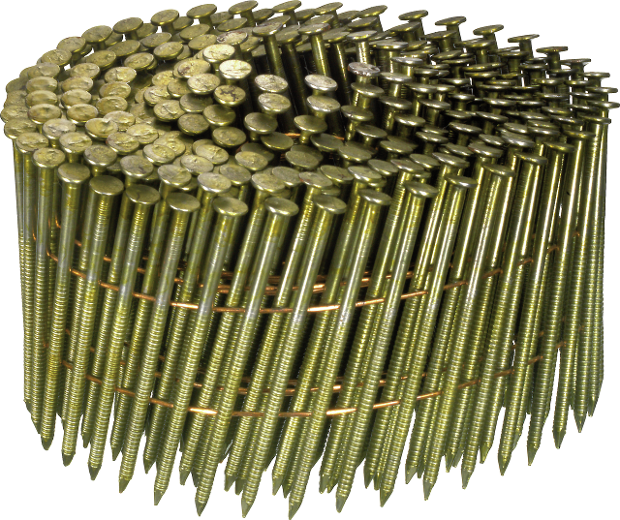

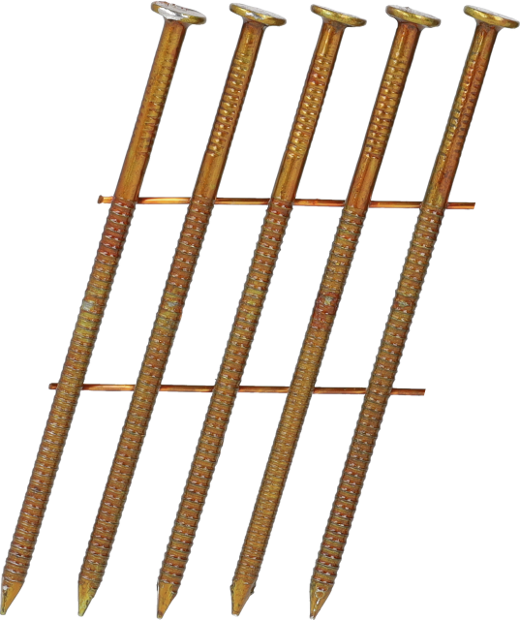

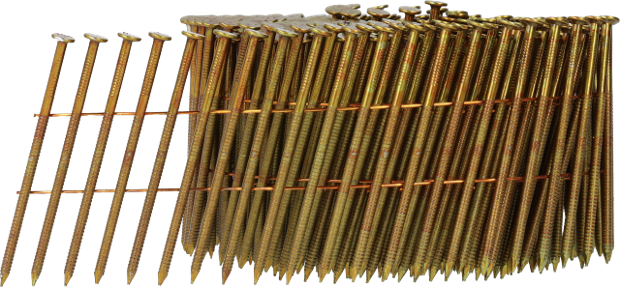

Senco cn flat bb dp ring senc. 2,3x65mm

Specifications

Identificaton

Article number

EL25APBH

GTIN

8715274021850

Technical specifications

Collation angle

16 °

Wounding type

Flat

Collation type

Wire collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Bright basic standard tensile

Coating

Sencoted

Application environment

Indoor

Type of nail

Coilnails

Nail shank type

Ring shank

Point type

Diamond

Pointangle

36 °

Pitch min

7.13 mm

Pitch max

7.13 mm

Max outerdiamer coil

108 mm

Amount fasteners on strip/coil

300 - 300

Nail length

65.0 mm

Nail diameter

2.3 mm

CE Specifications

Characteristic head pull through parameter

22.4 N/mm²

CE fastener type

Round cross-section ring shank nail

DOP No

EL25APBH

Protection level in micron

0

Service class

1

Coating type

Coating type 3

Coating length

49.5 mm

Head cross sectional area

23.0 mm

Threaded/profiled length

46.0 mm

Characteristic yield moment

1523.0 Nmm

Characteristic tensile strength

620.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

8.9 N/mm²

Non-technical specifications

Package quantity

8100

Logistical specifications

Net weight

17.93 kg
