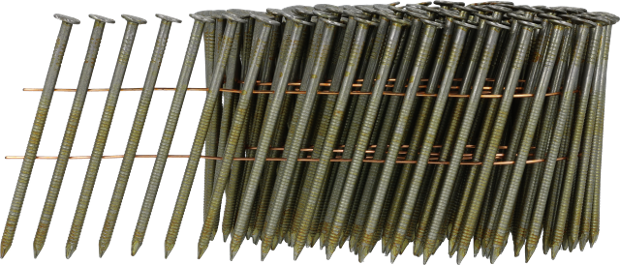

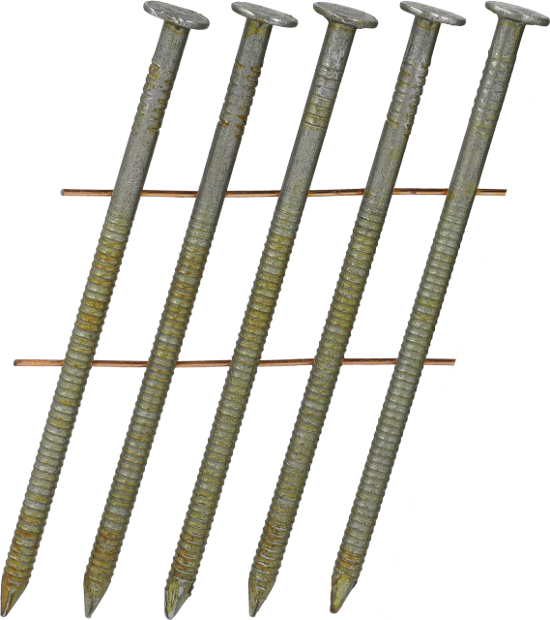

2,87mm flat ring coilnail, bright basic, Sencoted, Jumbo
tap image to zoom
Description
2,87mm flat ring coilnail, bright basic, Sencoted, Jumbo
Norm
- Harmonized standard EN 14592:2008+A1:2012
Specifications
Identificaton
- Article number
- GL25APBFJ
- GTIN
- 8715274023472
Technical specifications
- Collation angle
- 16 °
- Wounding type
- Jumbo
- Collation type
- Wire collated
- Wire material
- Carbon steel standard tensile
Fastener specifications
- Finish
- Bright basic standard tensile
- Coating
- Sencoted
- Application environment
- Indoor
- Type of nail
- Coilnails
- Nail shank type
- Ring shank
- Point type
- Diamond
- Pointangle
- 40 °
- Pitch min
- 8.4 mm
- Pitch max
- 8.4 mm
- Max outerdiamer coil
- 122 mm
- Nail diameter
- 2.87 mm
- Amount fasteners on strip/coil
- 1000 - 1000
- Nail length
- 65.0 mm
CE Specifications
- Characteristic head pull through parameter
- 27.12 N/mm²
- CE fastener type
- Round cross-section ring shank nail
- DOP No
- GL25APBFJ
- Service class
- 1
- Coating type
- Coating type 3
- Coating length
- 49.5 mm
- Head cross sectional area
- 36.0 mm
- Threaded/profiled length
- 49.0 mm
- Characteristic yield moment
- 3054.0 Nmm
- Characteristic tensile strength
- 695.0 N/mm²
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 8.5 N/mm²
Non-technical specifications
- Package quantity
- 6750
Logistical specifications
- Net weight
- 23.0 kg
