Senco cn con f.galv dp sm plain 3,1x32mm

Article number HJ15ATAV

tap image to zoom

Description

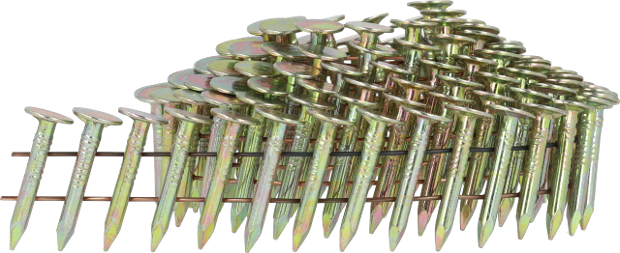

3,1mm flat smooth coilnail, galvanized, plain

Applications

Asphalt shingles, Fiber glass shingles, Siding, Vapor barriers

Specifications

Identificaton

Article number
HJ15ATAV
GTIN
8715274021782

Technical specifications

Collation angle
16 °
Wounding type
Conical
Collation type
Wire collated
Wire material
Carbon steel standard tensile

Fastener specifications

Finish
Flash galvanised or greater
Coating
Plain
Application environment
Indoor
Type of nail
Coilnails
Nail shank type
Smooth shank
Point type
Diamond
Pointangle
40 °
Pitch min
8.4 mm
Pitch max
8.4 mm
Max outerdiamer coil
122 mm
Amount fasteners on strip/coil
120 - 120
Nail length
32.0 mm
Nail diameter
3.1 mm

CE Specifications

Characteristic head pull through parameter
25.5 N/mm²
CE fastener type
Round cross-section plain shank nail
DOP No
HJ15ATAV
Protection level in micron
≤5
Service class
1
Coating type
NA
Coating length
22.5 mm
Head cross sectional area
72.0 mm
Characteristic yield moment
3000.0 Nmm
Characteristic tensile strength
620.0 N/mm²
Harmonized standard
EN 14592:2008+A1:2012
Characteristic withdrawal parameter
3.9 N/mm²

Non-technical specifications

Package quantity
6480

Logistical specifications

Net weight
12.04 kg
