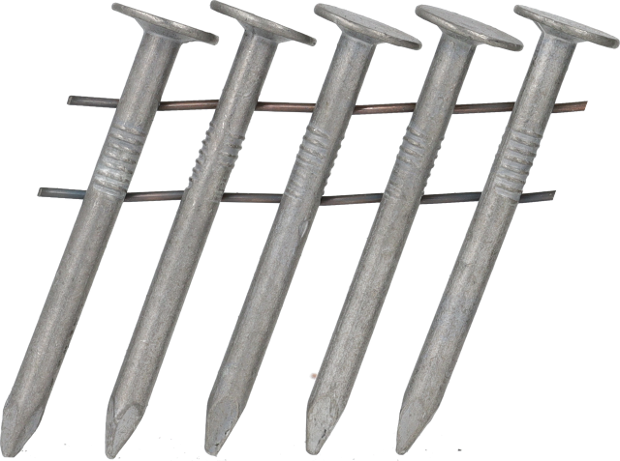

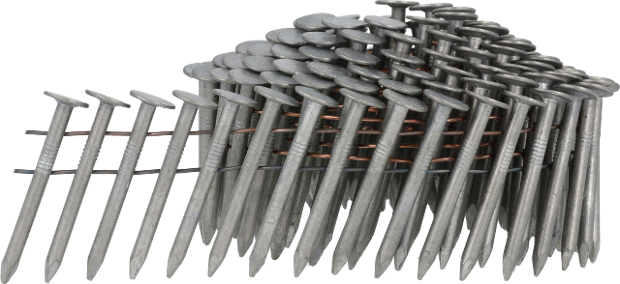

3,1mm conical smooth coilnail, HDG, plain

Specifications

Identificaton

Article number

HJ17ASAVN

GTIN

8715274292700

Technical specifications

Collation angle

16 °

Wounding type

Conical

Collation type

Wire collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Hot-Dipped galvanised 3

Coating

Plain

Application environment

Outdoor

Type of nail

Coilnails

Nail shank type

Smooth shank

Point type

Diamond

Pointangle

40 °

Pitch min

8.4 mm

Pitch max

8.4 mm

Max outerdiamer coil

122 mm

Nail diameter

3.1 mm

Nail length

38.0 mm

CE Specifications

Characteristic head pull through parameter

25.5 N/mm²

CE fastener type

Round cross-section plain shank nail

DOP No

HJ17ASAVN

Service class

3

Coating type

Coating type 3

Head cross sectional area

72.0 mm

Characteristic yield moment

3000.0 Nmm

Characteristic tensile strength

620.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

3.9 N/mm²

Non-technical specifications

Package quantity

5400
