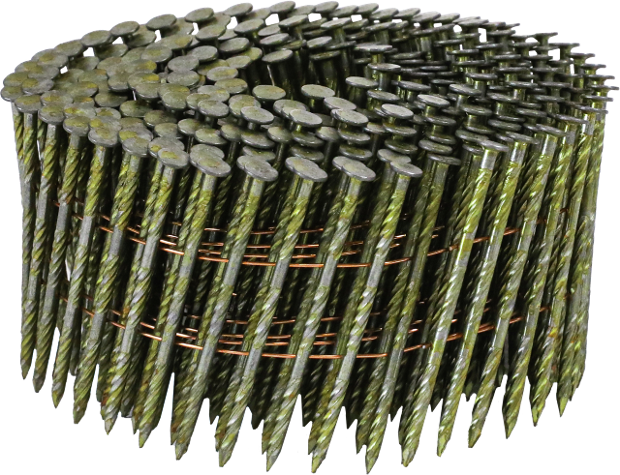

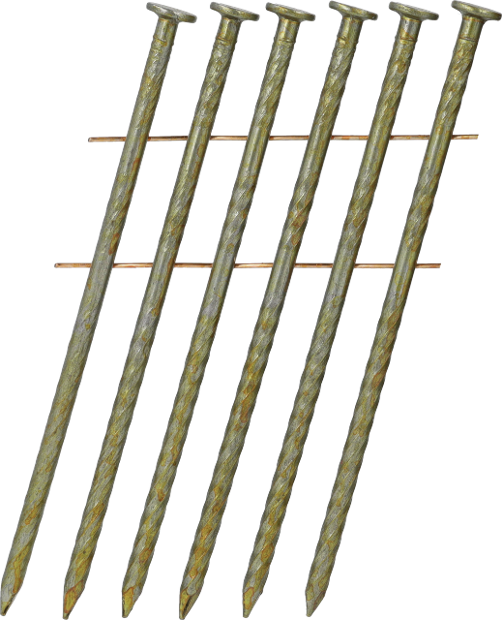

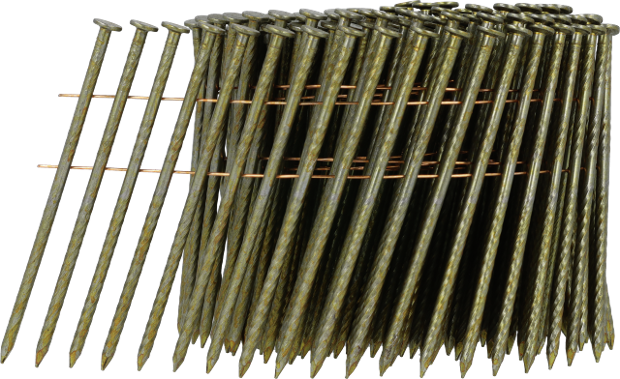

Senco cn flat bb dp screw senc. 3,1x90mm

tap image to zoom

Description

3,1mm flat screw coilnail, bright basic, Sencoted

Read more Read less

Request information

Specifications

Identificaton

Article number: HK29APBF
GTIN: 8715274028071

Technical specifications

Collation angle: 16 °
Wounding type: Flat
Collation type: Wire collated
Wire material: Carbon steel standard tensile

Fastener specifications

Finish: Bright basic standard tensile
Coating: Sencoted
Application environment: Indoor
Type of nail: Coilnails
Nail shank type: Screw shank
Point type: Diamond
Pointangle: 40 °
Pitch min: 8.4 mm
Pitch max: 8.4 mm
Max outerdiamer coil: 122 mm
Nail diameter: 3.1 mm
Amount fasteners on strip/coil: 225 - 225
Nail length: 90.0 mm

CE Specifications

CE fastener type: Round cross-section screw shank nail
DOP No: HK29APBF
Service class: 1
Coating type: Coating type 3

Non-technical specifications

Package quantity: 4050

Logistical specifications

Net weight: 10.0 kg

Downloads

HK29APBF_en_CommercialProductSheet_1.7_1752210488783 PDF 1 Mb
