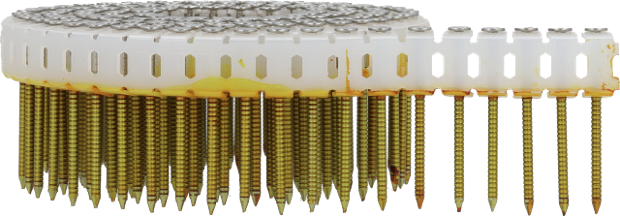

1,6mm flat ring coilnail, AISI304, Sencoted, plastic collated

tap image to zoom

Description

Specifications

Technical specifications

Collation angle: 0 °
Wounding type: Flat
Collation type: Plastic collated 9mm
Wire material: Stainless steel AISI 304 (A2)

Fastener specifications

Coating: Sencoted
Application environment: Outdoor
Type of nail: Coilnails
Nail shank type: Ring shank
Point type: Diamond
Pointangle: 36 °
Pitch min: 5.7 mm
Pitch max: 5.7 mm
Max outerdiamer coil: 90 mm
Nail diameter: 1.6 mm
