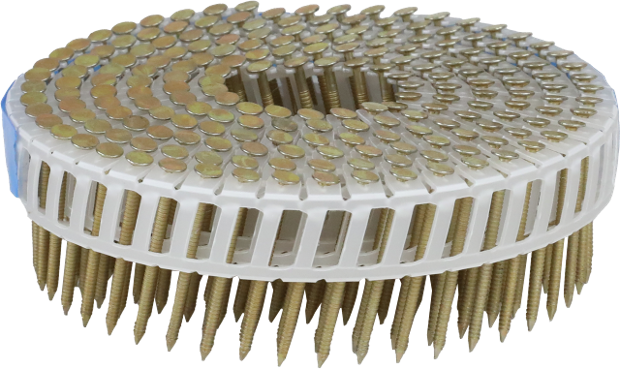

Senco cn flat galv. dp. ring HL 2,1x38mm

Specifications

Identificaton

Article number

SL17AABAP

GTIN

8715274177359

Technical specifications

Collation angle

16 °

Wounding type

High load

Collation type

Wire collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Regular galvanised

Coating

Sencoted

Application environment

Indoor

Type of nail

Coilnails

Nail shank type

Ring shank

Point type

Diamond

Pointangle

36 °

Pitch min

7.7 mm

Pitch max

7.7 mm

Max outerdiamer coil

120 mm

Amount fasteners on strip/coil

3000 - 3000

Nail length

38.0 mm

Nail diameter

2.1 mm

CE Specifications

Characteristic head pull through parameter

25.0 N/mm²

CE fastener type

Round cross-section ring shank nail

DOP No

SL17AABAP

Protection level in micron

≤5

Service class

1

Coating type

Coating type 3

Coating length

28.5 mm

Head cross sectional area

19.0 mm

Threaded/profiled length

28.5 mm

Characteristic yield moment

1062.0 Nmm

Characteristic tensile strength

700.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

6.9 N/mm²

Non-technical specifications

Package quantity

9600

Logistical specifications

Net weight

10.8 kg
