AX brad RAL9010 1,2x25mm

tap image to zoom

Description

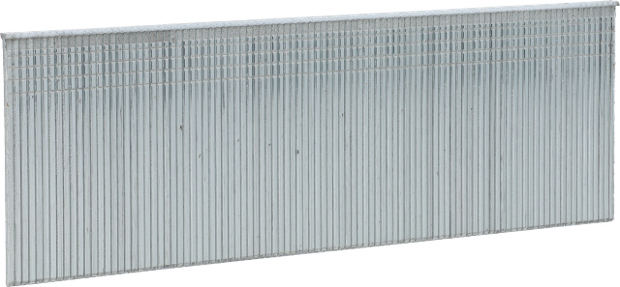

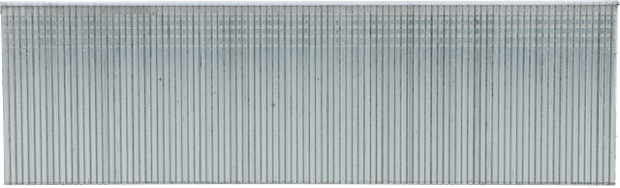

1,2mm AX brad nail, galvanized, bulk RAL color

Read more Read less

Request information

Specifications

Identificaton

Article number: AX13EACP9010
GTIN: 8715274040578

Technical specifications

Collation angle: 0 °
Collation type: Glue collated
Wire material: Carbon steel standard tensile
Gauge: 18

Fastener specifications

Finish: Regular galvanised
Coating: Painted
Application environment: Indoor
Type of nail: Brads
Nail head type: Medium head
Nail shank type: Smooth shank
Point type: Sharp chisel
Pointangle: 70 °
Nail diameter: 1.2 mm
Amount fasteners on strip/coil: 100 - 100
Nail length: 25.0 mm

Non-technical specifications

Package quantity: 5000

Logistical specifications

Net weight: 1.1 kg

Downloads

AX13EACP9010_en_CommercialProductSheet_1.6_1752324392260 PDF 1 Mb
