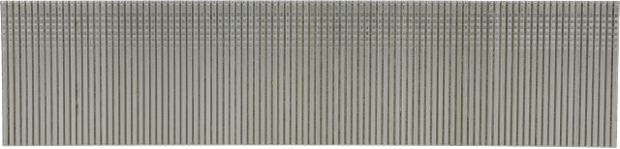

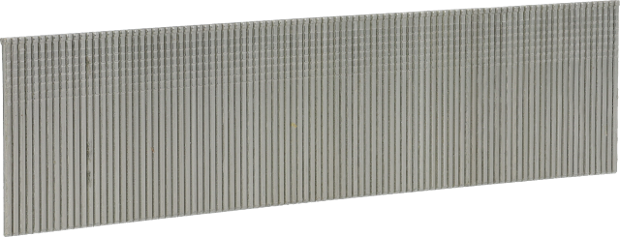

1,2mm AY brad nail, AISI304

tap image to zoom

Description

1,2mm AY brad nail, AISI304

Read more Read less

Request information

Specifications

Identificaton

Article number: AY10EGA
GTIN: 8715274005751

Technical specifications

Collation angle: 0 °
Collation type: Glue collated
Wire material: Stainless steel AISI 304 (A2)
Gauge: 18

Fastener specifications

Coating: Plain
Application environment: Outdoor
Type of nail: Brads
Nail head type: Slight head
Nail shank type: Smooth shank
Point type: Sharp chisel
Pointangle: 70 °
Nail diameter: 1.2 mm
Amount fasteners on strip/coil: 100 - 100
Nail length: 15.0 mm

Non-technical specifications

Package quantity: 5000

Logistical specifications

Net weight: 0.67 kg

Downloads

AY10EGA_en_CommercialProductSheet_1.4_1727344701038 PDF 1 Mb
