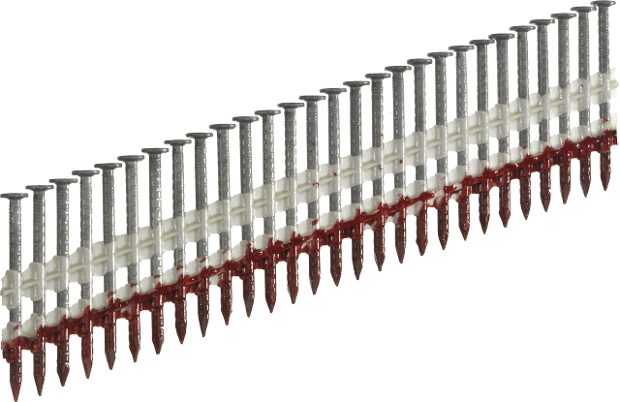

GB barbed stripnail 2,87x75mm
Article number GB57ASB4W
tap image to zoom
Description
2,87mm barbed stripnail, HDG, Sencoted, waterproof packaging
Applications
Framing, Sheathing, Subfloor, Decking, Trusses, Pallets and crates
Specifications
Identificaton
- Article number
- GB57ASB4W
- GTIN
- 8715274037424
Technical specifications
- Collation angle
- 17 °
- Collation type
- Plastic collated
- Wire material
- Carbon steel standard tensile
Fastener specifications
- Finish
- Hot-Dipped galvanised 3
- Coating
- Sencoted
- Application environment
- Outdoor
- Type of nail
- FRH stripnails
- Nail head type
- Full round head
- Nail shank type
- Barbed shank
- Point type
- Diamond
- Pointangle
- 40 °
- Amount fasteners on strip/coil
- 28 - 28
- Nail length
- 75.0 mm
- Nail diameter
- 2.87 mm
CE Specifications
- Characteristic head pull through parameter
- 20.3 N/mm²
- CE fastener type
- Round cross-section ring shank nail
- DOP No
- GB57ASB4W
- Protection level in micron
- 55
- Service class
- 3
- Coating type
- Coating type 3
- Coating length
- 55.5 mm
- Head cross sectional area
- 36.0 mm
- Threaded/profiled length
- 55.0 mm
- Characteristic yield moment
- 3192.0 Nmm
- Characteristic tensile strength
- 695.0 N/mm²
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 6.71 N/mm²
Non-technical specifications
- Package quantity
- 500
Logistical specifications
- Net weight
- 8.91 kg
