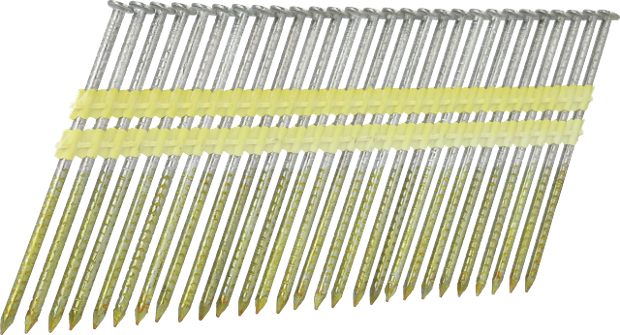

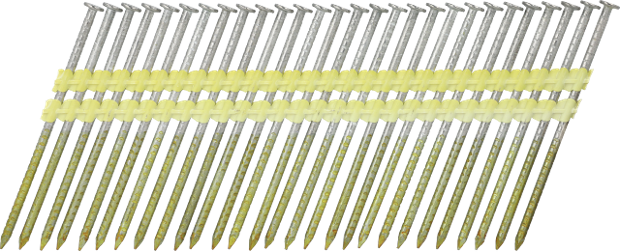

3,1mm barbed stripnail, HDG, Sencoted

Specifications

Identificaton

Article number

HB59ASBSW

GTIN

8715274041858

Technical specifications

Collation angle

21 °

Collation type

Plastic collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Hot-Dipped galvanised 3

Coating

Sencoted

Application environment

Outdoor

Type of nail

FRH stripnails

Nail head type

Full round head

Nail shank type

Barbed shank

Point type

Diamond

Pointangle

40 °

Nail diameter

3.1 mm

Amount fasteners on strip/coil

28 - 28

Nail length

90.0 mm

CE Specifications

Characteristic head pull through parameter

20.3 N/mm²

DOP No

HB59ASBSW

Protection level in micron

55

Service class

3

Coating type

Coating type 3

Coating length

61.5 mm

Head cross sectional area

37.0 mm

Threaded/profiled length

63.0 mm

Characteristic yield moment

3193.0 Nmm

Characteristic tensile strength

695.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

3.4 N/mm²

Non-technical specifications

Package quantity

500

Logistical specifications

Net weight

5.0 kg
