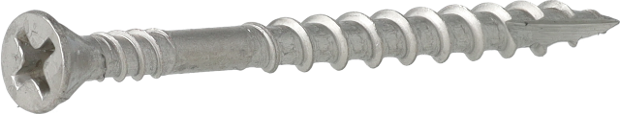

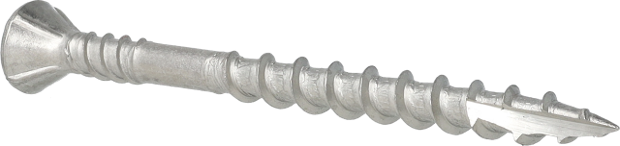

Flooring wood to wood screw 4,2x55mm

Specifications

Identificaton

Article number

42R55MX

GTIN

8715274059297

Technical specifications

Collation type

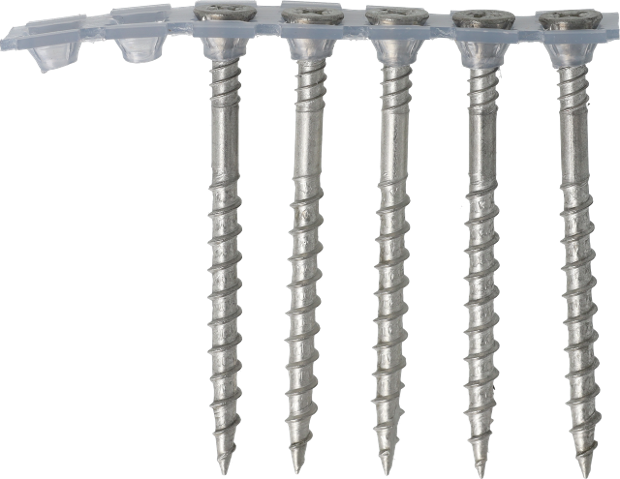

Plastic collated

Wire material

Stainless steel AISI 316 (A4)

Rotations per minute

2300, 2500, 3000, 3300 RPM

Fastener specifications

Application environment

Outdoor

Point type

Type 17 cut point

Pointangle

23 °

Screw head type

Small with 4 nibs

Screw recess

Philips 2

Screw thread type

2/3 coarse

Amount fasteners on strip/coil

50 - 50

Screw length

55.0 mm

Screw diameter

4.2 mm

CE Specifications

Characteristic head pull through parameter

16.0 N/mm²

DOP No

42R55MX

Service class

3

Inner threaded diameter

3.15 mm

Threaded/profiled length

36.0 mm

Characteristic yield moment

2400.0 Nmm

Torsional ratio

≥ 1,5

Characteristic torsional resistance

1.88 Nm

Characteristic torsional strength

3.47 Nm

Characteristic tensile capacity

3200.0 N

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

12.0 N/mm²

Non-technical specifications

Package quantity

1000

Logistical specifications

Net weight

3.79 kg
