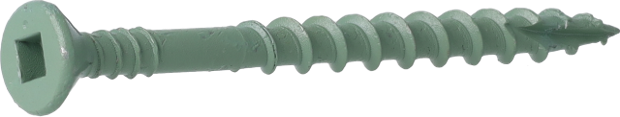

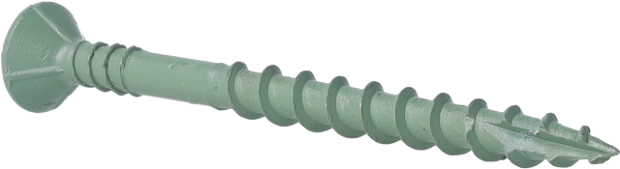

Flooring/decking wood to wood screw, weatherex II, square

Specifications

Identificaton

Article number

45W75MW

GTIN

0741474208652

Technical specifications

Collation type

Plastic collated

Wire material

Carbon steel standard tensile

Rotations per minute

2300, 2500, 3000, 3300 RPM

Fastener specifications

Finish

Weatherex II

Application environment

Outdoor

Point type

Type 17 cut point

Pointangle

23 °

Screw recess

Square 2

Screw thread type

2/3 coarse

Amount fasteners on strip/coil

50 - 50

Screw length

75.0 mm

Screw diameter

4.5 mm

CE Specifications

Characteristic head pull through parameter

14.0 N/mm²

DOP No

45W75MW

Material notification on CE label

Non-alloy steel

Service class

3

Inner threaded diameter

3.3 mm

Threaded/profiled length

50.0 mm

Characteristic yield moment

4300.0 Nmm

Torsional ratio

≥ 1,5

Characteristic torsional resistance

1.74 Nm

Characteristic torsional strength

6.0 Nm

Characteristic tensile capacity

7300.0 N

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

12.5 N/mm²

Non-technical specifications

Package quantity

1000

Logistical specifications

Net weight

5.06 kg
