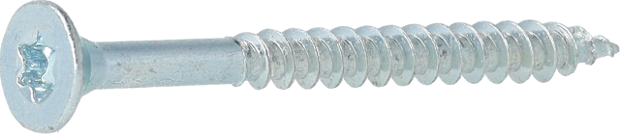

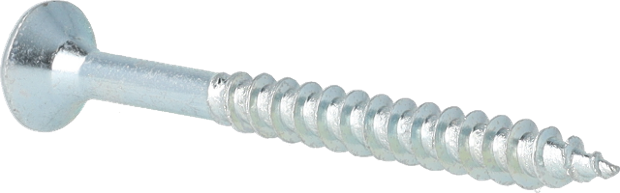

USP Chipboard screw countersunk head, 6,0x150mm
tap image to zoom
Description
Chipboard screw, partial thread, clear zinc, torx
Norm
- Harmonized standard EN 14592:2008+A1:2012
Specifications
Identificaton
- Article number
- 32108060150
- GTIN
- 8715274239194
Technical specifications
- Wire material
- Carbon steel standard tensile
Fastener specifications
- Finish
- Clear zinc
- Application environment
- Indoor
- Point type
- Sharp
- Screw head type
- Countersunk
- Screw recess
- Torx 30
- Screw thread type
- Partly threaded
- Screw length
- 150.0 mm
- Screw diameter
- 6.0 mm
CE Specifications
- Characteristic head pull through parameter
- 14.0 N/mm²
- CE fastener type
- Chipboard screw
- DOP No
- 32108060150
- Material notification on CE label
- Carbon Steel
- Protection level in micron
- 3
- Threaded/profiled length
- 68.0 mm
- Characteristic yield moment
- 8500.0 Nmm
- Torsional ratio
- ≥1.5
- Characteristic torsional strength
- 9.0 Nm
- Characteristic tensile capacity
- 10000.0 N
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 10.0 N/mm²
Non-technical specifications
- Package quantity
- 100
Logistical specifications
- Net weight
- 1.78 kg
