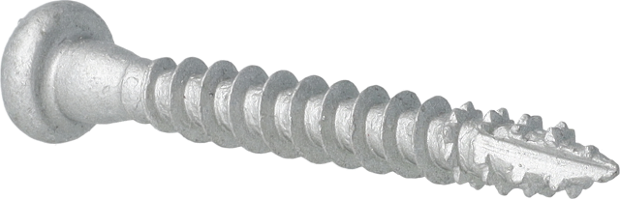

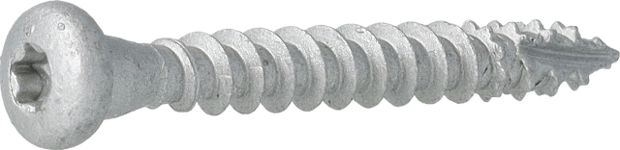

Metalconnector screw T20 Outdoor 5x50mm
tap image to zoom
Description
Metal connector screw, outdoor, torx
Norm
- Harmonized standard EN 14592:2008+A1:2012
Specifications
Identificaton
- Article number
- 50MC050PDO
- GTIN
- 8715274039466
Technical specifications
- Wire material
- Carbon steel standard tensile
Fastener specifications
- Finish
- Ceramic
- Application environment
- Outdoor
- Head diameter
- 8.2 mm
- Point type
- Type 17 Saw Thread
- Screw type
- Screw for joist connector
- Screw head type
- Pan head
- Screw recess
- Torx 20
- Screw thread type
- Full thread
- Screw length
- 50.0 mm
- Screw diameter
- 5.0 mm
CE Specifications
- DOP No
- 50MC050PDO
- Material notification on CE label
- Carbon Steel
- Service class
- 3
- Inner threaded diameter
- 3.0 mm
- Threaded/profiled length
- 50.0 mm
- Characteristic yield moment
- 6100.0 Nmm
- Torsional ratio
- ≥1.5
- Characteristic torsional strength
- 6.0 Nm
- Characteristic tensile capacity
- 7400.0 N
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 10.0 N/mm²
Non-technical specifications
- Package quantity
- 1200
