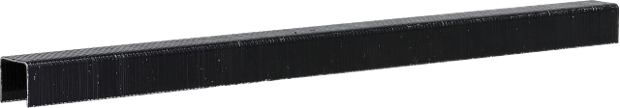

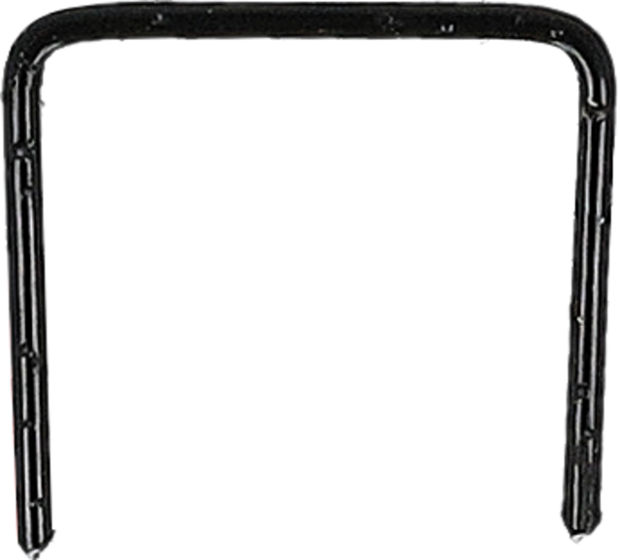

C staple 10mm, RAL9005

tap image to zoom

Description

C staple galvanized, bulk, RAL color

Read more Read less

Request information

Specifications

Identificaton

Article number: C06BACP9005
GTIN: 8715274041056

Technical specifications

Collation angle: 0 °
Collation type: Glue collated
Wire material: Carbon steel standard tensile
Gauge: 22

Fastener specifications

Finish: Regular galvanised
Coating: Painted
Application environment: Indoor
Point type: Chisel
Pointangle: 90 °
Staple type: Light wire staple
Staple thickness: 0.54 mm
Staple wire size: 0.68 mm
Staple crown width: 9.5 mm
Staple inside width: 7.7 mm
Staple serie: C staple
Amount fasteners on strip/coil: 178 - 180
Staple length: 10.0 mm

Non-technical specifications

Package quantity: 25000

Logistical specifications

Net weight: 1.89 kg

Downloads

C06BACP9005_en_CommercialProductSheet_1.5_1752218194339 PDF 1 Mb
