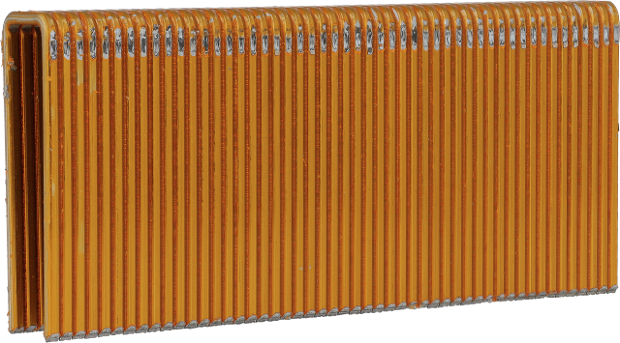

S staple 44mm

tap image to zoom

Description

S staple 12 micron, Sencoted, strong glue

Read more Read less

Norm

Harmonized standard EN 14592:2008+A1:2012

Request information

Specifications

Identificaton

Article number: S19NXBS
GTIN: 8715274030272

Technical specifications

Collation angle: 0 °
Collation type: Glue collated
Wire material: Carbon steel standard tensile
Gauge: 14

Fastener specifications

Finish: Zinc plated 12 micron
Coating: Sencoted
Application environment: Half indoor
Point type: Sharp chisel
Pointangle: 70 °
Staple type: Heavy wire staple
Staple thickness: 1.92 mm
Staple wire size: 2.03 mm
Staple crown width: 11.8 mm
Staple inside width: 7.67 mm
Staple serie: S staple
Amount fasteners on strip/coil: 50 - 50
Staple length: 44.0 mm

CE Specifications

Characteristic head pull through parameter: 37.3 N/mm²
CE fastener type: Deformed circular cross-section staple
DOP No: S19NXBS
Protection level in micron: 12
Service class: 2
Coating type: Coating type 3
Coating length: 44.0 mm
Characteristic yield moment: 1114.0 Nmm
Characteristic tensile strength: 850.0 N/mm²
Harmonized standard: EN 14592:2008+A1:2012
Characteristic withdrawal parameter: 5.6 N/mm²

Non-technical specifications

Package quantity: 6500

Logistical specifications

Net weight: 15.1 kg

Downloads

S19NXBS_en_CommercialProductSheet_1.5_1748316024236 PDF 1 Mb
DOP VS-CPR-201305-S003 PDF 511 Kb
S19NXBS_en_DeclarationOfPerformanceDoP_1.0eu_1748316096856 PDF 62 Kb
S19NXBS_en_DeclarationOfPerformanceDoP_1.0uk_1748316100931 PDF 62 Kb
