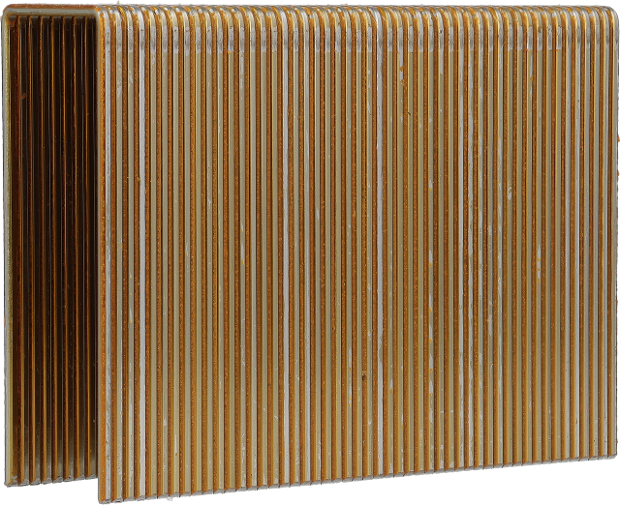

SP staple 130mm AISI304 ETA

tap image to zoom

Description

SP staple AISI304, sharp chisel, Sencoted

Read more Read less

Request information

Specifications

Identificaton

Article number: SP45NGB-ETA
GTIN: 8715274239552

Technical specifications

Collation angle: 0 °
Collation type: Glue collated
Wire material: Stainless steel AISI 304 (A2)
Gauge: 14

Fastener specifications

Coating: Sencoted
Application environment: Outdoor
Point type: Sharp chisel
Pointangle: 75 °
Staple type: Heavy wire staple
Staple thickness: 1.8 mm
Staple wire size: 2.02 mm
Staple crown width: 27.0 mm
Staple inside width: 22.9 mm
Staple serie: SP staple
Amount fasteners on strip/coil: 50 - 50
Staple length: 130.0 mm

CE Specifications

Characteristic head pull through parameter: 37.3 N/mm²
CE fastener type: Deformed circular cross-section staple
DOP No: VS-CPR-201305-S004
Service class: 3
Coating type: Coating type 3
Coating length: 130.0 mm
Characteristic yield moment: 1114.0 Nmm
Characteristic tensile strength: 900.0 N/mm²

Non-technical specifications

Package quantity: 1000

Logistical specifications

Net weight: 6.34 kg

Downloads

SP45NGB-ETA_en_CommercialProductSheet_1.8_1752225418085 PDF 1 Mb
DOP SSETA-8120 PDF 637 Kb
