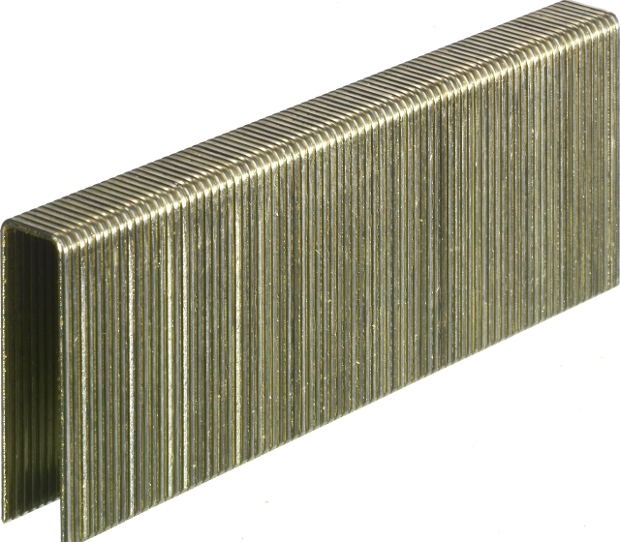

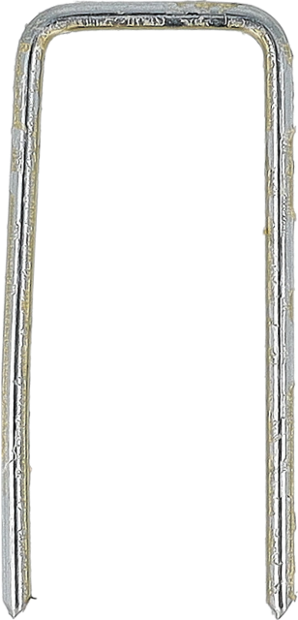

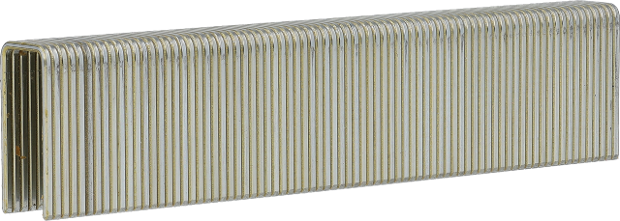

M staple 12mm

tap image to zoom

Description

M staple galvanized, Sencoted

Read more Read less

Request information

Specifications

Identificaton

Article number: M08BABN
GTIN: 8715274296739

Technical specifications

Collation angle: 0 °
Collation type: Glue collated
Wire material: Carbon steel standard tensile
Gauge: 18

Fastener specifications

Finish: Regular galvanised
Coating: Sencoted
Application environment: Indoor
Point type: Chisel
Pointangle: 70 °
Staple type: Medium wire staple
Staple thickness: 1.04 mm
Staple wire size: 1.17 mm
Staple crown width: 9.5 mm
Staple inside width: 7.67 mm
Staple serie: M staple
Amount fasteners on strip/coil: 78 - 80
Staple length: 12.0 mm

Non-technical specifications

Package quantity: 50000

Downloads

M08BABN_en_CommercialProductSheet_1.6_1752281902156 PDF 1 Mb
