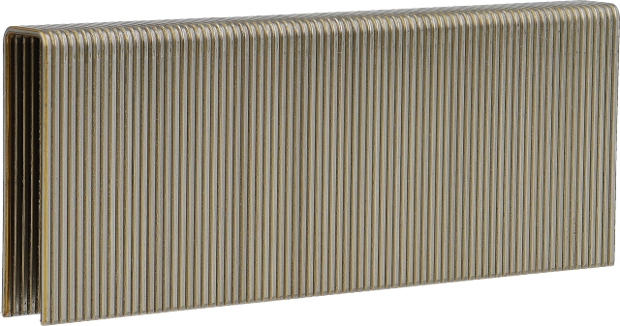

M staple AISI304, Sencoted

tap image to zoom

Description

M staple AISI304, Sencoted

Read more Read less

Request information

Specifications

Identificaton

Article number: M17BGB
GTIN: 8715274004792

Technical specifications

Collation angle: 0 °
Collation type: Glue collated
Wire material: Stainless steel AISI 304 (A2)
Gauge: 18

Fastener specifications

Coating: Sencoted
Application environment: Outdoor
Point type: Chisel
Pointangle: 70 °

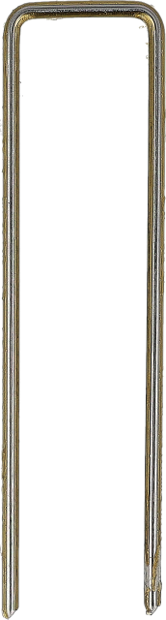

Staple type: Medium wire staple
Staple thickness: 1.04 mm
Staple wire size: 1.17 mm
Staple crown width: 9.5 mm
Staple inside width: 7.67 mm
Staple serie: M staple
Amount fasteners on strip/coil: 78 - 80
Staple length: 38.0 mm

Non-technical specifications

Package quantity: 10000

Logistical specifications

Net weight: 7.41 kg

Downloads

M17BGB_en_CommercialProductSheet_1.2_1748300747708 PDF 1 Mb
