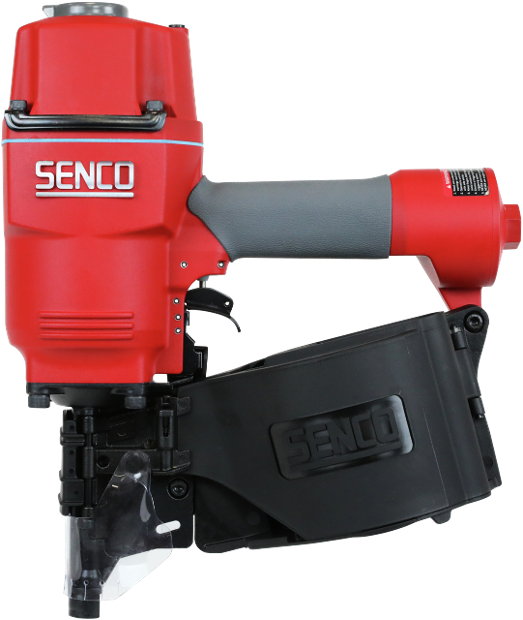

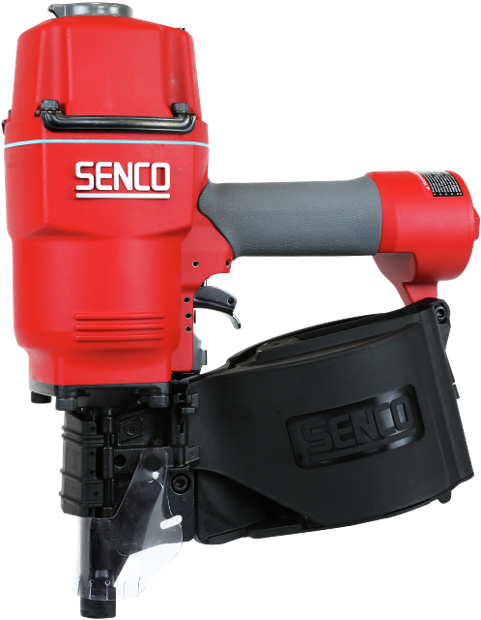

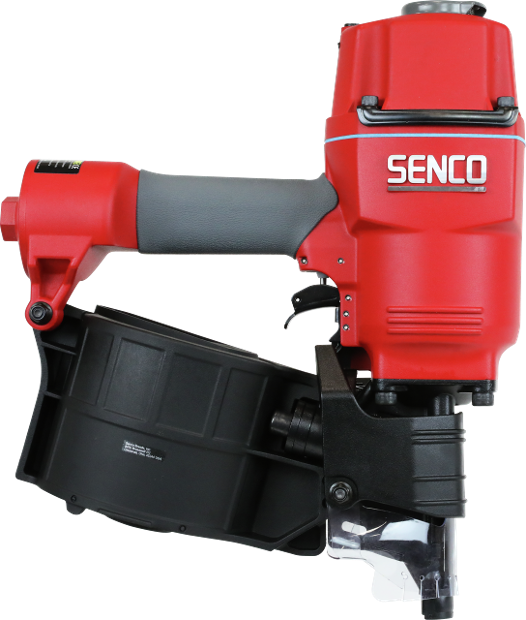

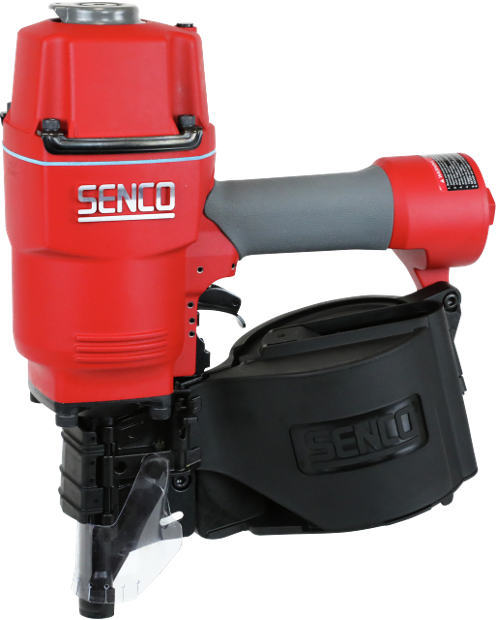

PAL83, pallet coilnailer, dual

Specifications

Identificaton

Serie

PalletPro

Article number

PAL83

GTIN

8715274017532

Type

PAL83

Technical specifications

Collation angle

16 °

Wounding type

Flat

Oil free

No

Operating temperature

-18 - 49 °C

Collation type

Wire collated

Firing mode

Dual

Magazine capacity

300

Shots / second

3

Air inlet size

3/8" female

Air consumption at 60 shots/minute

164.0 l/m

Operating pressure

4.8 - 8.3 bar

Sound pressure level

90.5 Lpa

Sound power level

102.4 Lwa

Vibration level

5.39 m/s2

Fastener specifications

Type of nail

Coilnails

Smooth shank type

Smooth shank

Smooth shank nail length

38 - 83 mm

Smooth shank nail diameter

2.3 - 3.8 mm

Ring shank type

Ring shank

Ring shank nail length

38 - 75 mm

Ring shank nail diameter

2.3 - 2.3 mm

Screw shank type

Screw shank

Screw shank nail length

38 - 80 mm

Screw shank nail diameter

2.3 - 3.1 mm

Pitch min

8.0 mm

Pitch max

8.0 mm

Max outerdiamer coil

121 mm

Non-technical specifications

Warranty

1 year

Dimensions (DxWxH)

132 x 341 x 365 mm

Includes case

No

Logistical specifications

Net weight

3.8 kg
