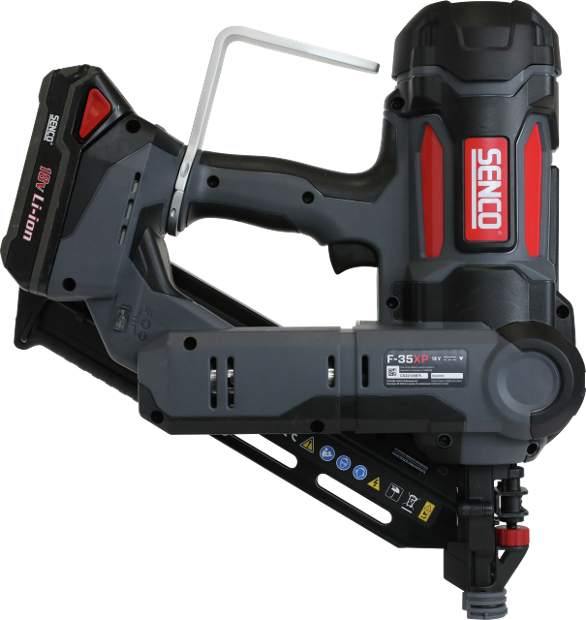

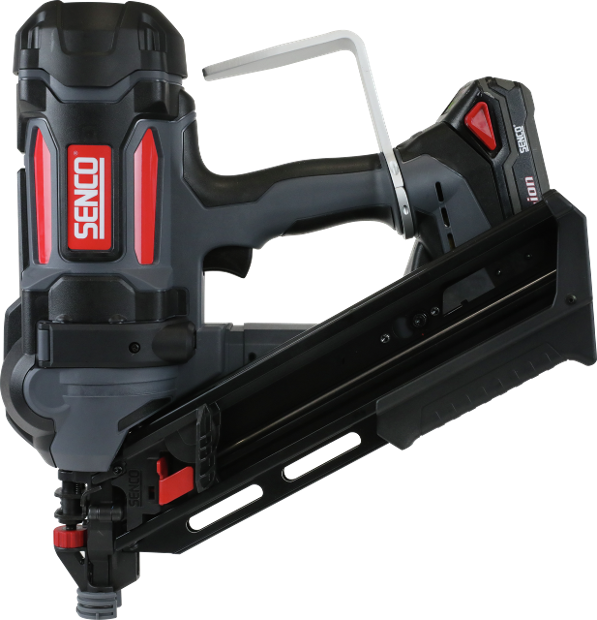

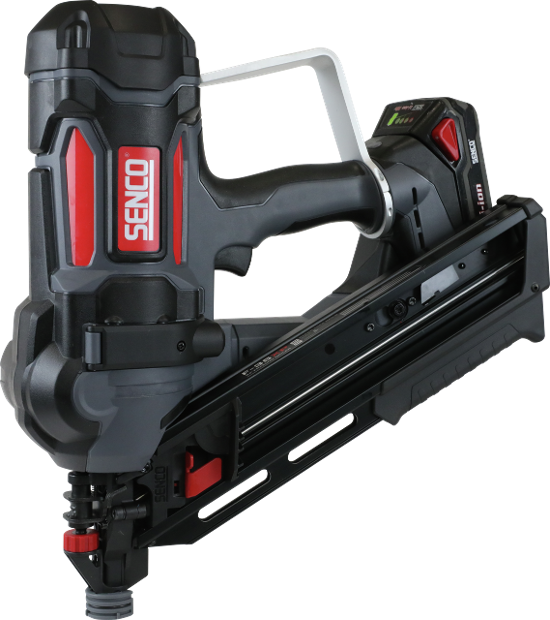

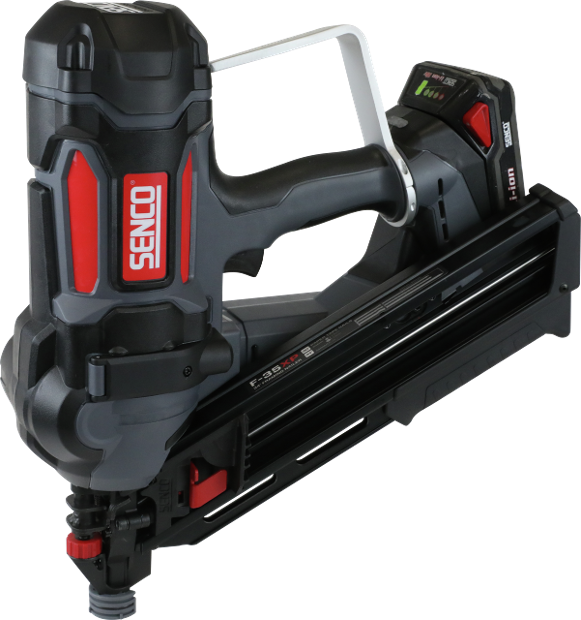

F-35XP Fusion Framing Nailer CH UK
Article number 10G7001N
tap image to zoom
Description
The battery powered F-35XP combines pneumatic performance with cordless convenience. The tool boasts the ease to drive 90mm nails, has the speed of a pneumatic tool and fires nails with no ramp up time. The F-35XP operates with SENCO Li-Ion batteries and sealed compressed air, with a refillable airport, which simplifies tool maintenance and provides a durable tool for the most demanding applications.
Features & Benefits
- Rafter hook
- Tool-free depth-of-drive
- Led light
- Dry fire lockout
- Refillable air port
- Aggressive toenail safety
- LED Power Gauge
- Selectable Trigger
Applications

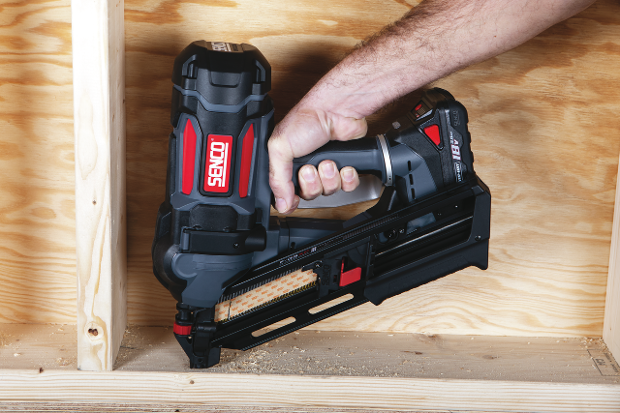

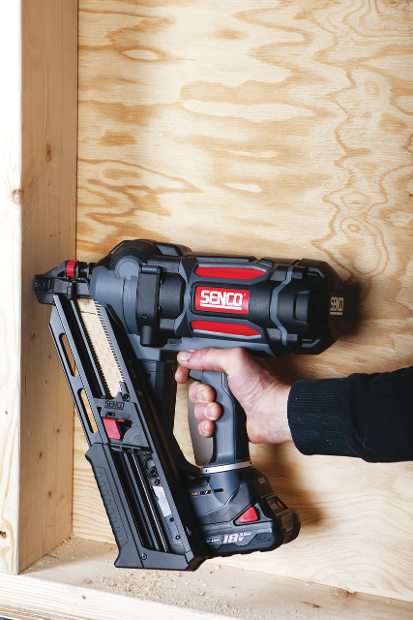

Framing, Subfloor, Sheathing, Decking, Siding, Fencing, Pallets and crates
Specifications
Identificaton
- Serie
- Fusion
- Article number
- 10G7001N
- GTIN
- 8715274253749
- Type
- F-35XP
Technical specifications
- Collation angle
- 34 °
- Operating temperature
- -7 - 40 °C
- Collation type
- Paper collated
- Firing mode
- Dual
- Fastener driving power
- 108 J
- Magazine capacity
- 60
- Electrical plug type
- UK
- Battery type
- Li-Ion
- Battery voltage
- 18 V
- Battery ampere rating
- 3.0 Ah
- Battery power
- 54.0 W
- Recharge time 80%
- 30 min
- Recharge time 100%
- 60 min
- Number of batteries
- 2
- Sound pressure level
- 85.0 Lpa
- Sound power level
- 96.0 Lwa
- Vibration level
- 9.2 m/s2
Fastener specifications
- Type of nail
- CH stripnails
- Smooth shank type
- Smooth shank
- Smooth shank nail length
- 50 - 90 mm
- Smooth shank nail diameter
- 2,87 - 3,8 mm
- Ring shank type
- Ring shank
- Ring shank nail length
- 50 - 75 mm
- Ring shank nail diameter
- 2,87 - 3,1 mm
- Screw shank type
- Screw shank
- Screw shank nail length
- 50 - 75 mm
- Screw shank nail diameter
- 2,87 - 3,1 mm
Non-technical specifications
- Warranty
- 2 years

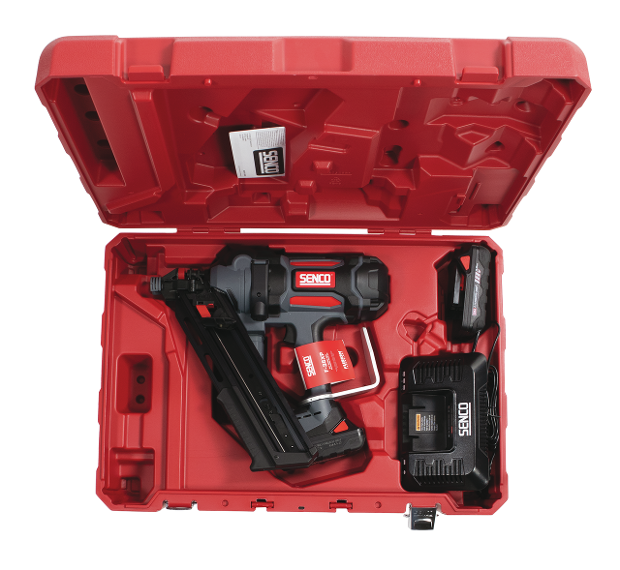

- Package contents
- Manual, Parts Chart
- Dimensions (DxWxH)
- 140 x 36 x 366 mm
- Includes case
- Yes
Logistical specifications
- Net weight
- 5.16 kg
Related Fasteners
Downloads
- Manual SENCO F-35XP PDF 42 Mb
- Manual SENCO F-35XP PDF 42 Mb
- Part chart SENCO Fusion F-35XP PDF 3 Mb
- Commercial product sheet en 10G7001N PDF 1 Mb
