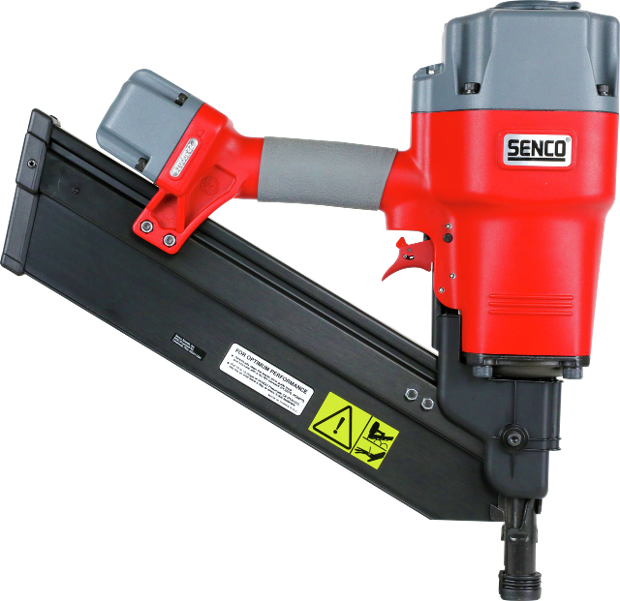

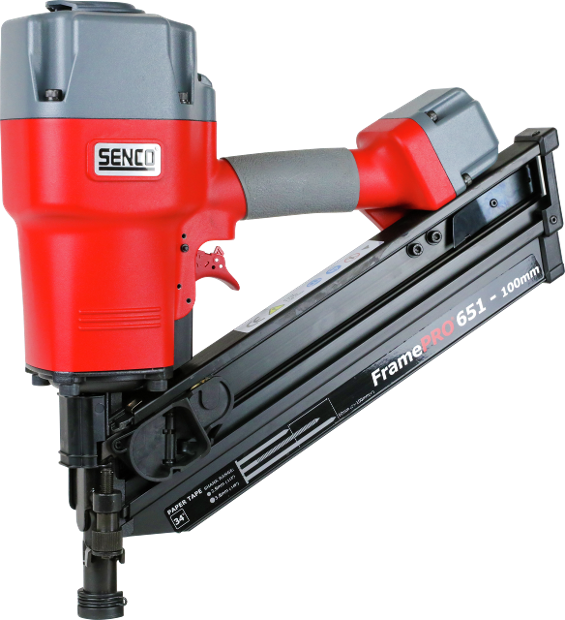

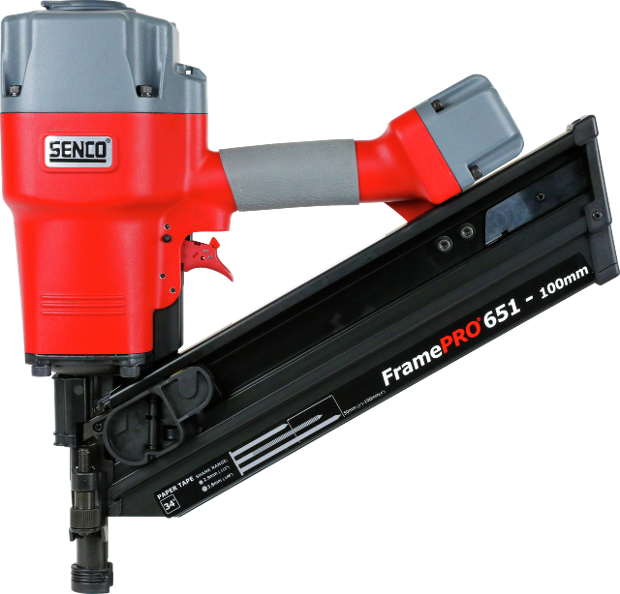

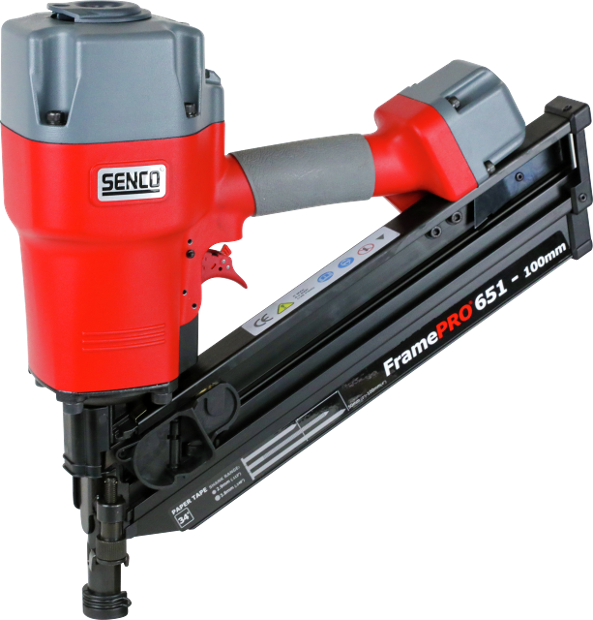

FramePro651, CH framing nailer

Article number 2G2121N

tap image to zoom

Description

The FramePro651 pneumatic framing nailer drives nails ranging from 2.9 to 3.3mm in diameter and 50 to 90mm in length. Being part of the Pro Serie, this clipped head nailer provides all the important features at an affordable price. Its compact design makes it easy to handle and easy on the arm. The 34° short, in-line magazines provide excellent maneuverability and line of sight.

Features & Benefits

  • Aggressive toenail safety
  • Dry fire lockout
  • 360° Adjustable Exhaust
  • Rafter hook
  • Selectable Trigger
  • Comfort grip
  • Tool-free depth-of-drive

Applications

Framing, Subfloor, Sheathing, Decking, Siding, Fencing, Pallets and crates

Find dealer Find dealer Request information Request information

Specifications

Identificaton

Serie
Pro
Article number
2G2121N
GTIN
0741474125218
Type
FramePro651

Technical specifications

Collation angle
34 °
Oil free
No
Operating temperature
-18 - 49 °C
Collation type
Paper collated
Firing mode
Dual
Magazine capacity
70
Air inlet size
3/8" female
Air consumption at 60 shots/minute
311.5 l/m
Operating pressure
4.8 - 8.3 bar
Sound pressure level
97.0 Lpa
Sound power level
101.0 Lwa
Vibration level
3.67 m/s2

Fastener specifications

Type of nail
CH stripnails
Smooth shank type
Smooth shank
Smooth shank nail length
50 - 90 mm
Smooth shank nail diameter
2,87 - 3,3 mm
Ring shank type
Ring shank
Ring shank nail length
50 - 75 mm
Ring shank nail diameter
2,87 - 2,87 mm
Screw shank type
Screw shank
Screw shank nail length
50 - 75 mm
Screw shank nail diameter
2,87 - 3,1 mm

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
106 x 384 x 362 mm

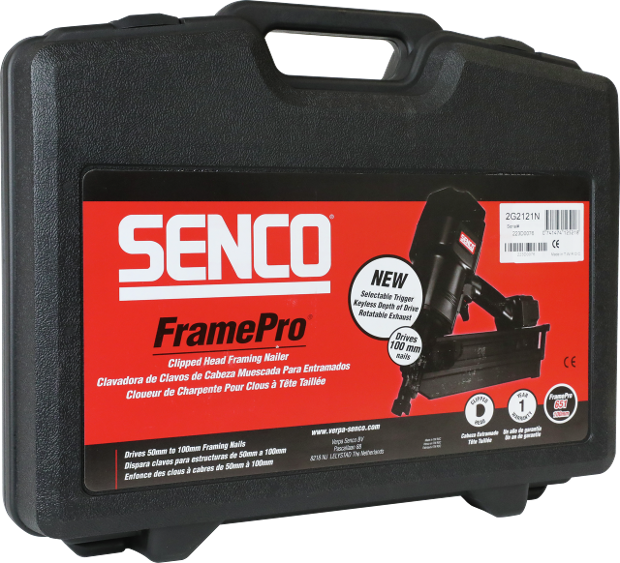

Includes case
Yes

Logistical specifications

Net weight
3.81 kg
