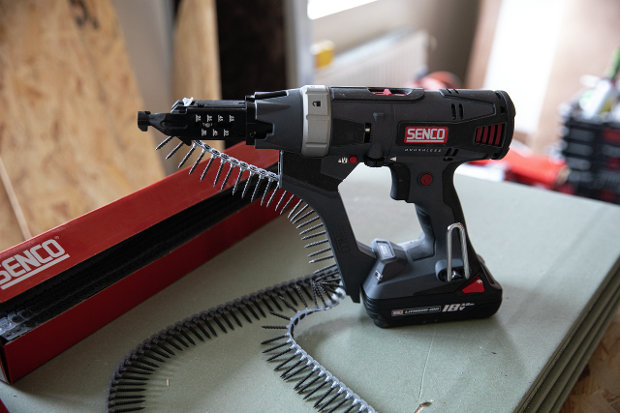

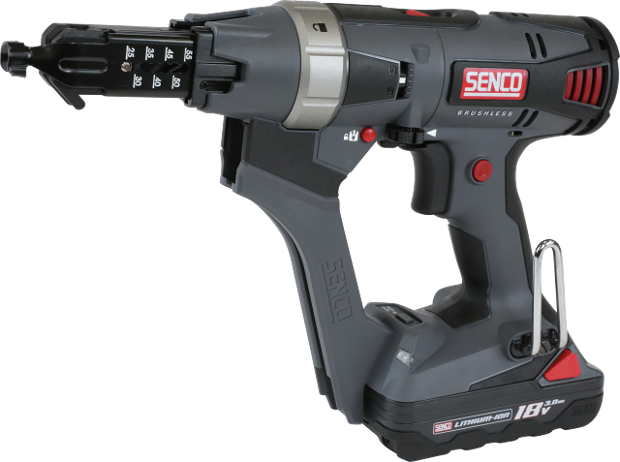

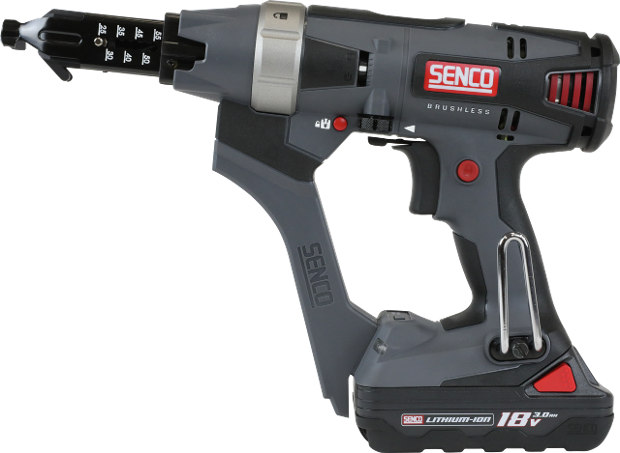

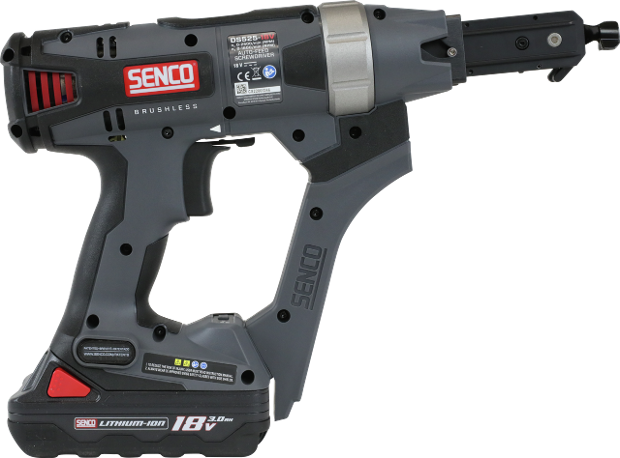

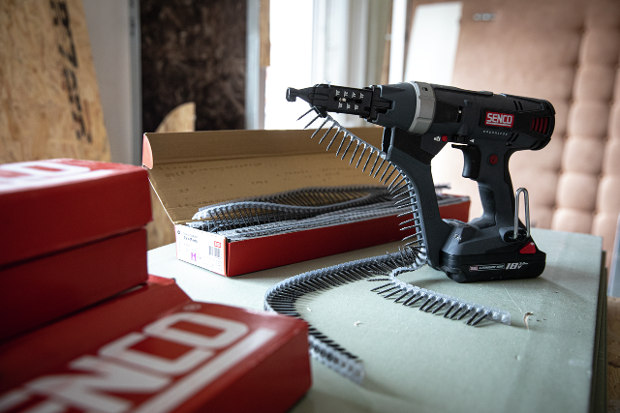

DS525-18V UK High Speed 55mm

Article number 10A7001N

tap image to zoom

Description

Powered by an efficient brushless motor, this high speed auto-feed screwdriver, a quick release feed system with our patented corner fit technology. The DS525 also features feed on return - the next screw is aligned with the bit for better line of sight and easier, more accurate screw placement.

Features & Benefits

  • Patented corner-fit feed system Detachable feed system to expose bit for quick reversing 5000 RPM high speed brushless motor Precise depth of drive adjustment with depth lock Quick slide button bit change Variable speed trigger with lock and reverse

Applications

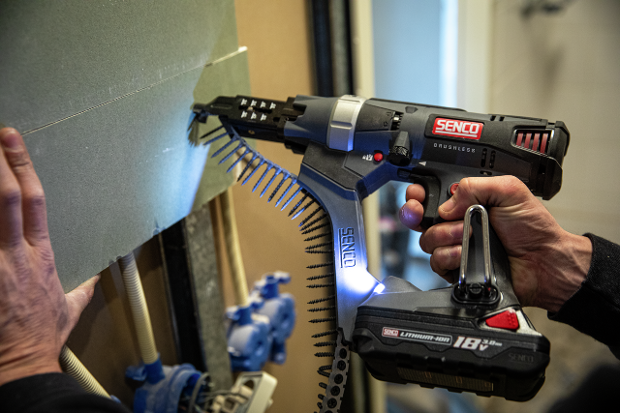

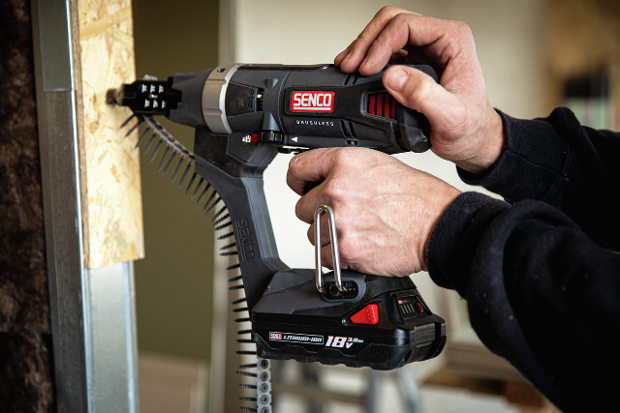

Drywall (to wood or steel studs), Cement board, Underlayment, Sheating to steel, Metal framing, Structural steel decking, Rigid foam insulation

Find dealer Find dealer Request information Request information

Specifications

Technical specifications

Length
372 mm
Width
86 mm
Height
241 mm
Min. length fastener 1
25 mm
Max. length fastener 1
55 mm
Magazine capacity
50 pieces

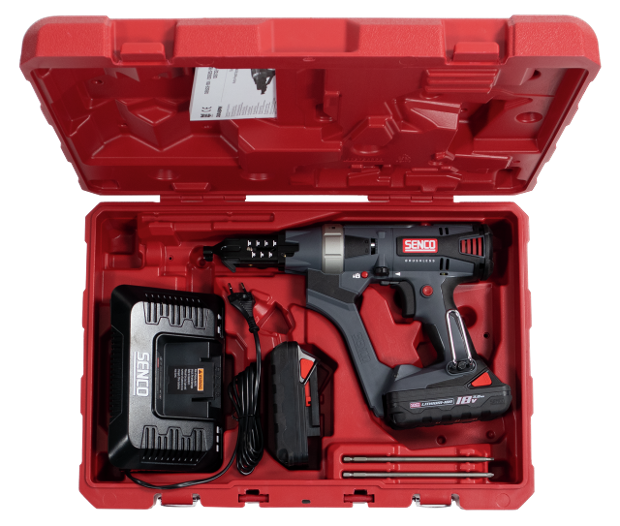

Includes case
Yes
Voltage (ac)
230 V
Frequency
50 Hz
Electrical plug type
UK
Rotations per minute (RPM)
5000 RPM
Battery type
Li-Ion
Battery voltage
18 V
Battery ampere rating
3 Ah
Battery power
54 W
Recharge time 80%
15 minutes
Recharge time 100%
45 minutes
Shots per charge
2000
Number of batteries in kit
2 pieces
Bit length
174 mm
Torque
5 Nm
Fastener type
Collated Screws
Fastener length 1
25-55 mm
Screw diameter
3.5-5.5 mm

Non-technical specifications

GTIN
8715274245201
Warranty
5 year(s)
Net weight
2.48
Net weight unit
kg
