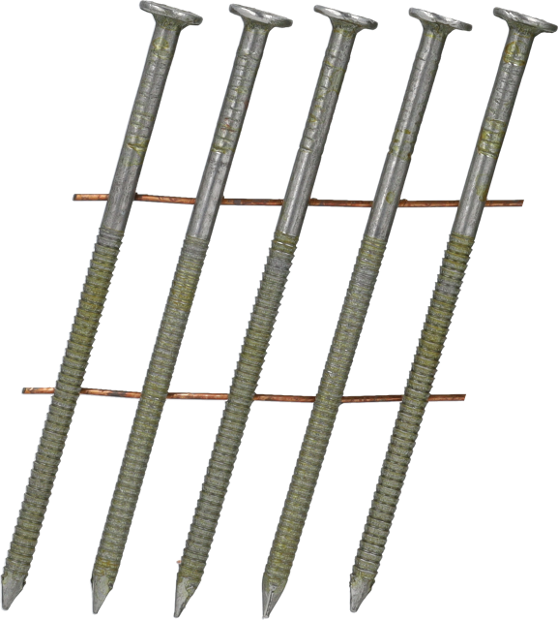

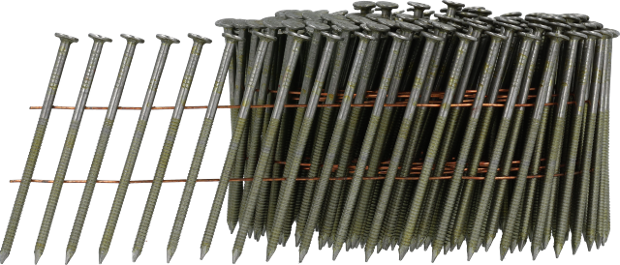

2,5mm flat ring coilnail, bright basic, Sencoted

Specifications

Identificaton

Article number

BL22APBF

GTIN

8715274044682

Technical specifications

Collation angle

16 °

Wounding type

Flat

Collation type

Wire collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Bright basic standard tensile

Coating

Sencoted

Application environment

Indoor

Type of nail

Coilnails

Nail shank type

Ring shank

Point type

Diamond

Pointangle

36 °

Pitch min

8.4 mm

Pitch max

8.4 mm

Max outerdiamer coil

122 mm

Nail diameter

2.5 mm

Amount fasteners on strip/coil

275 - 275

Nail length

55.0 mm

CE Specifications

Characteristic head pull through parameter

25.5 N/mm²

CE fastener type

Round cross-section ring shank nail

DOP No

BL22APBF

Protection level in micron

0

Service class

1

Coating type

Coating type 3

Coating length

40.5 mm

Head cross sectional area

27.0 mm

Threaded/profiled length

40.0 mm

Characteristic yield moment

1620.0 Nmm

Characteristic tensile strength

700.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

9.1 N/mm²

Non-technical specifications

Package quantity

7425

Logistical specifications

Net weight

16.74 kg
