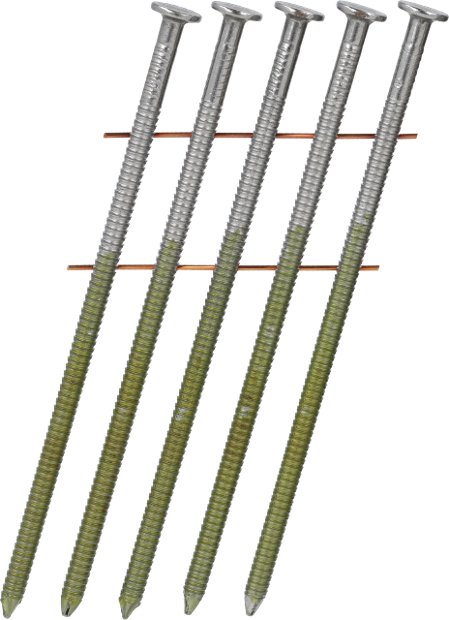

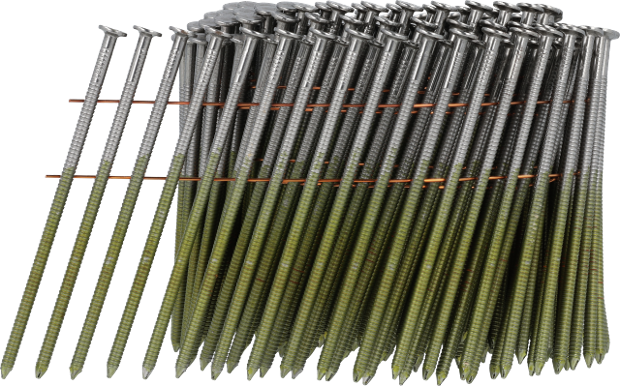

3,1mm flat ring coilnail, bright basic, Sencoted

Specifications

Identificaton

Article number

HL28APBF

GTIN

8715274017921

Technical specifications

Collation angle

16 °

Wounding type

Flat

Collation type

Wire collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Bright basic standard tensile

Coating

Sencoted

Application environment

Indoor

Type of nail

Coilnails

Nail shank type

Ring shank

Point type

Diamond

Pointangle

40 °

Pitch min

8.4 mm

Pitch max

8.4 mm

Max outerdiamer coil

122 mm

Nail diameter

3.1 mm

Amount fasteners on strip/coil

225 - 225

Nail length

80.0 mm

CE Specifications

Characteristic head pull through parameter

25.5 N/mm²

CE fastener type

Round cross-section ring shank nail

DOP No

HL28APBF

Service class

1

Coating type

Coating type 3

Head cross sectional area

37.0 mm

Characteristic yield moment

2640.0 Nmm

Characteristic tensile strength

620.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

3.9 N/mm²

Non-technical specifications

Package quantity

4050

Logistical specifications

Net weight

18.9 kg
