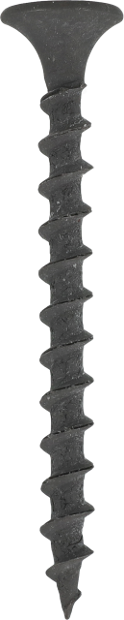

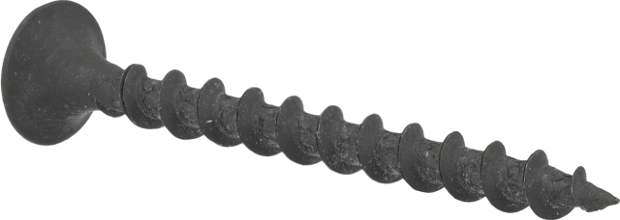

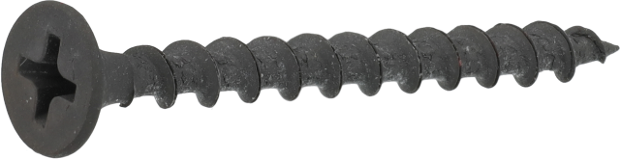

Drywall to wood screw, phosphated, philips

tap image to zoom

Description

Drywall to wood screw, phosphated, philips

Read more Read less

Norm

Harmonized standard EN 14566:2008+A1:2009

Request information

Specifications

Identificaton

Article number: 39A25MPN
GTIN: 8715274251622

Technical specifications

Collation type: Plastic collated
Wire material: Carbon steel standard tensile
Rotations per minute: 3300, 4000, 5000 RPM

Fastener specifications

Finish: Phosphated (grey)
Application environment: Indoor
Point type: Sharp
Pointangle: 23 °
Screw head type: Bugle head
Screw recess: Philips 2
Screw thread type: Coarse
Amount fasteners on strip/coil: 50 - 50
Screw length: 25.0 mm
Screw diameter: 3.9 mm

CE Specifications

DOP No: 39A25MPN
Service class: 1
Inner threaded diameter: 2.6 mm
Threaded/profiled length: 20.5 mm
Harmonized standard: EN 14566:2008+A1:2009

Non-technical specifications

Package quantity: 4000

Downloads

39A25MPN_en_CommercialProductSheet_1.5_1750161173578 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
39A25MPN_en_DeclarationOfPerformanceDoP_1.1eu_1750161100768 PDF 58 Kb
39A25MPN_en_DeclarationOfPerformanceDoP_1.1uk_1750161105015 PDF 58 Kb
