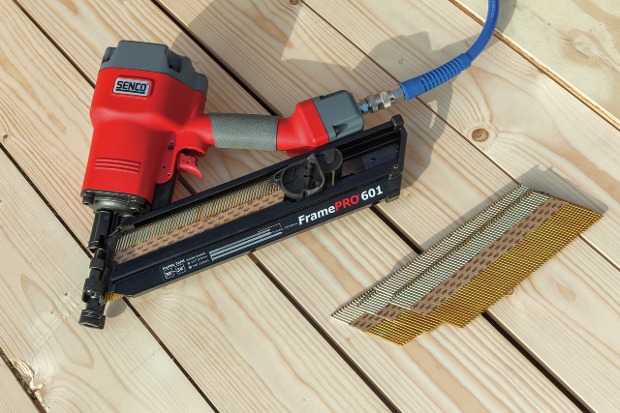

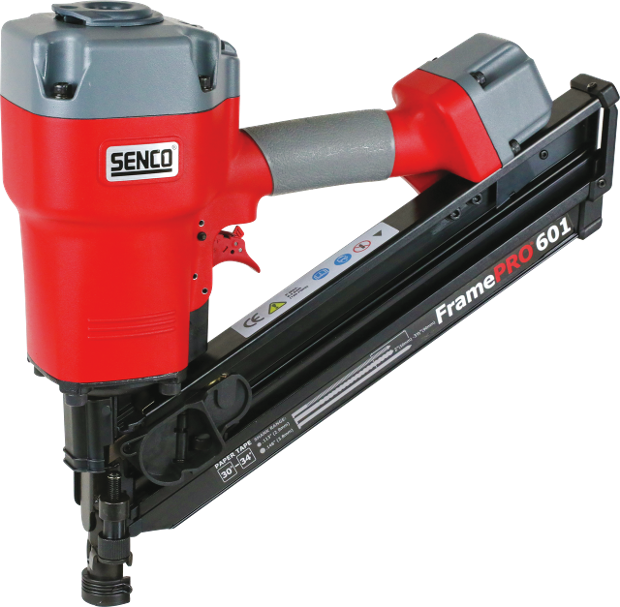

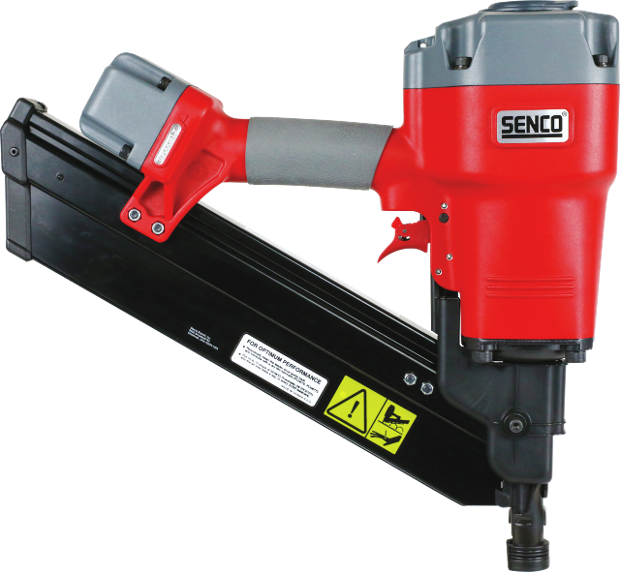

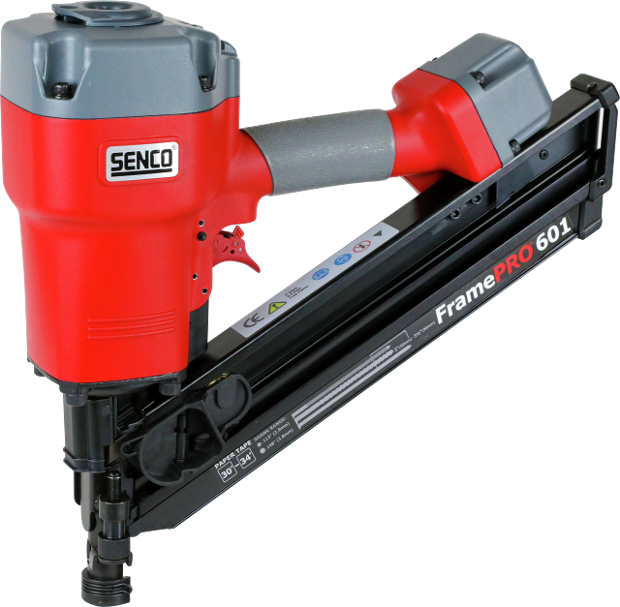

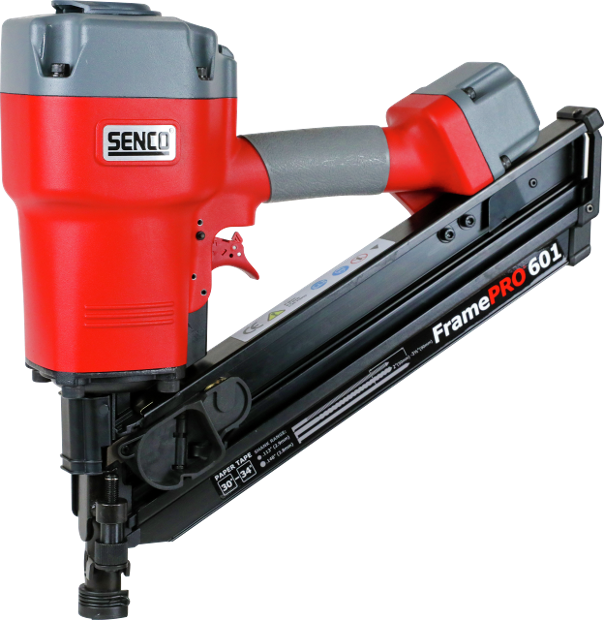

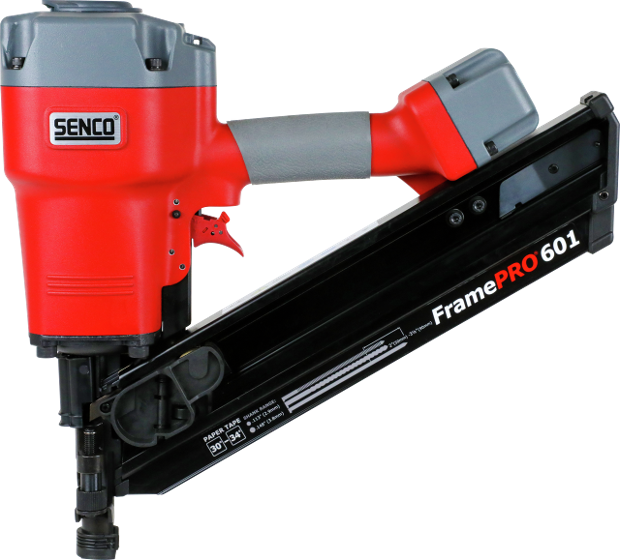

FramePro601, CH framing nailer

Article number 1G2101N

tap image to zoom

Description

This pneumatic framing nailer provides all the important features you want at an affordable price. A powerful Pro Serie framer that drives a wide range of clipped head fasteners in three diameters (2,9-3,1-3,3mm) from 50 to 90mm to handle virually any job. Its compact design makes the framer both easy to handle and easy on the arm. Whilst the 34° short, in-line magazines provide excellent maneuverability and line of sight.

Features & Benefits

  • Aggressive toenail safety
  • Dry fire lockout
  • 360° Adjustable Exhaust
  • Rafter hook
  • Selectable Trigger
  • Comfort grip
  • Tool-free depth-of-drive

Applications

Framing, Planks, Composite timbers, Wood construction, Subfloor, Fencing, Roofing

Find dealer Find dealer Request information Request information

Specifications

Identificaton

Serie
Pro
Article number
1G2101N
GTIN
0741474124631
Type
FramePro601

Technical specifications

Collation angle
34 °
Oil free
No
Operating temperature
-18 - 49 °C
Collation type
Paper collated
Firing mode
Dual
Magazine capacity
70
Air inlet size
3/8" female
Air consumption at 60 shots/minute
283.2 l/m
Operating pressure
4.8 - 8.3 bar
Sound pressure level
96.0 Lpa
Sound power level
101.0 Lwa
Vibration level
3.7 m/s2

Fastener specifications

Type of nail
CH stripnails
Smooth shank type
Smooth shank
Smooth shank nail length
50 - 90 mm
Smooth shank nail diameter
2,87 - 3,3 mm
Ring shank type
Ring shank
Ring shank nail length
50 - 75 mm
Ring shank nail diameter
2,87 - 2,87 mm
Screw shank type
Screw shank
Screw shank nail length
50 - 75 mm
Screw shank nail diameter
2,87 - 3,1 mm

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
106 x 384 x 337 mm
Includes case
Yes

Logistical specifications

Net weight
3.62 kg
