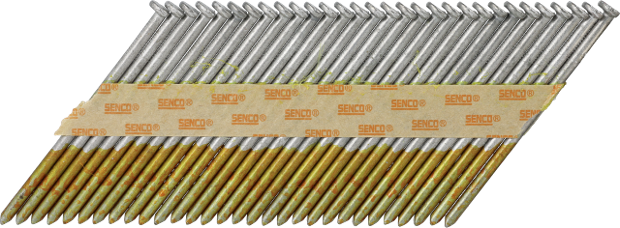

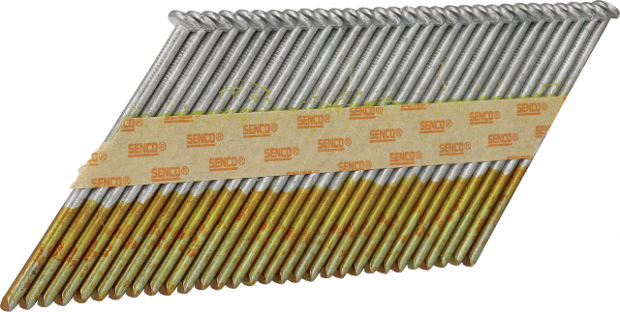

2,87mm smooth stripnail, HDG, Sencoted

Specifications

Identificaton

Article number

GC57ESBKR

GTIN

8715274026893

Technical specifications

Collation angle

34 °

Collation type

Paper collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Hot-Dipped galvanised 3

Coating

Sencoted

Application environment

Outdoor

Type of nail

CH stripnails

Nail head type

Clipped head

Nail shank type

Smooth shank

Point type

Sharp chisel

Pointangle

40 °

Nail diameter

2.87 mm

Amount fasteners on strip/coil

29 - 31

Nail length

75.0 mm

CE Specifications

Characteristic head pull through parameter

27.12 N/mm²

CE fastener type

Round cross-section plain shank nail

DOP No

GC57ESBKR

Protection level in micron

55

Service class

3

Coating type

Coating type 3

Coating length

48.0 mm

Head cross sectional area

30.0 mm

Characteristic yield moment

3054.0 Nmm

Characteristic tensile strength

695.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

2.45 N/mm²

Non-technical specifications

Package quantity

2000

Logistical specifications

Net weight

8.59 kg
